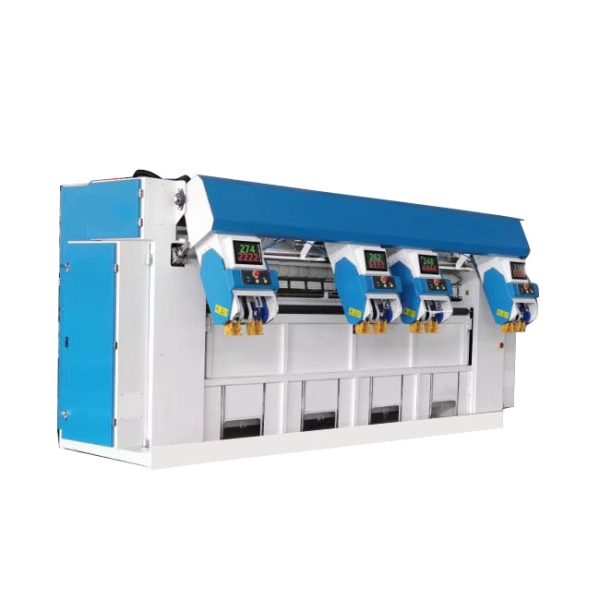

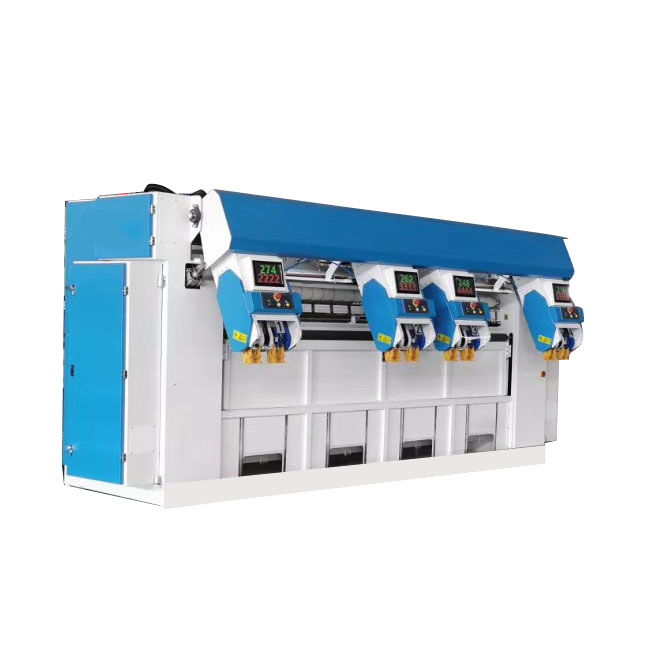

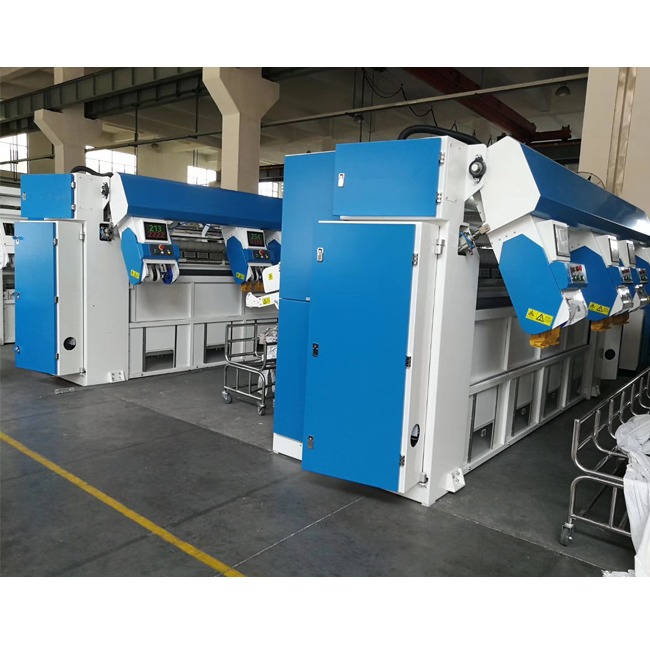

Automatic Feeder

Category:

Description

  1. Adopt Japanese Mitsubishi PLC control system, 10-inch high-definition touch screen, store more than 20 kinds of programs and more than 100 customer information.
  2. The uniquely developed control system, after continuous optimization and upgrading, is mature and stable, the interface design is simple and easy to operate, and it can support multiple languages. The control system is equipped with Internet functions such as remote fault diagnosis, troubleshooting, and program upgrade.
  3. Each station has the function of input quantity statistics, which can accurately measure the quantity of linen fed, which is convenient for operators to manage.
  4. Unique air duct structure design, flapping the cloth sucked into the air duct to improve the smoothness of the linen transport. The oversized bed linen can be smoothly sucked into the air duct, and the maximum bed sheet size is 3300x3500mm.
  5. 3 stations, or 4 stations synchronous transmission function, each station has two sets of cloth feeding manipulators, high work efficiency. Each group of feeding station is designed with loading waiting position, which makes the feeding action compact, reduces waiting time, and improves the efficiency of the whole machine.
  6. Designed with manual feeding function, it can realize manual feeding of bed linen, quilt cover, table cloth, pillowcase and other small linens.
  7. There are 2 smoothing functions, mechanical knife smoothing design, brush smoothing design, anti-clothing function.
  8. The guide rail mold is extruded and has high precision. The surface is treated with a special wear-resistant process. The cloth clips run smoothly on the track and the speed is fast.
  9. The frame structure of the machine is integrally welded, and each long shaft has been precisely processed.
  10. The shuttle board is controlled by a servo motor, with high accuracy and fast speed. Not only the bed sheet is transported at high speed, but also the quilt cover can be transported at low speed.
  11. The conveying speed can reach up to 60 meters per minute, and can convey up to 1200 sheets per hour.
  12. All electrical, pneumatic, bearing, motor and other components are imported from Japan and Europe.

Features

MODEL  Unit ZSJ-3300III

ZSJ-3300IV

Max Feeding Width mm 3000

3300

Number of Station

pc 3

4

Conveying Speed

m/min 10-60

10-60

Working Capacity

pc/h 800-1100,

750-850

800-1100

ELECTRIC

Power

220V-60Hz;3N+PE, 380/415V-50Hz;3N+PE

Motor Power Kw 15.05

15.05

AIR

Air Pressure Mpa 0.6

0.6

Air Consumption

L/min 200

200

DIMENSIONS

Width

mm 4800

4800

Depth

mm 2200

2200

Height

mm 2420

2420

Weight

Kg 4500

4650
