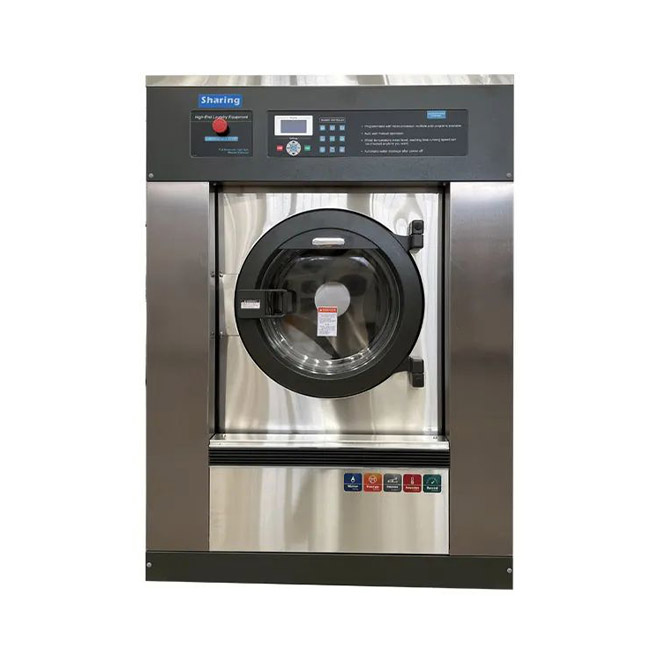

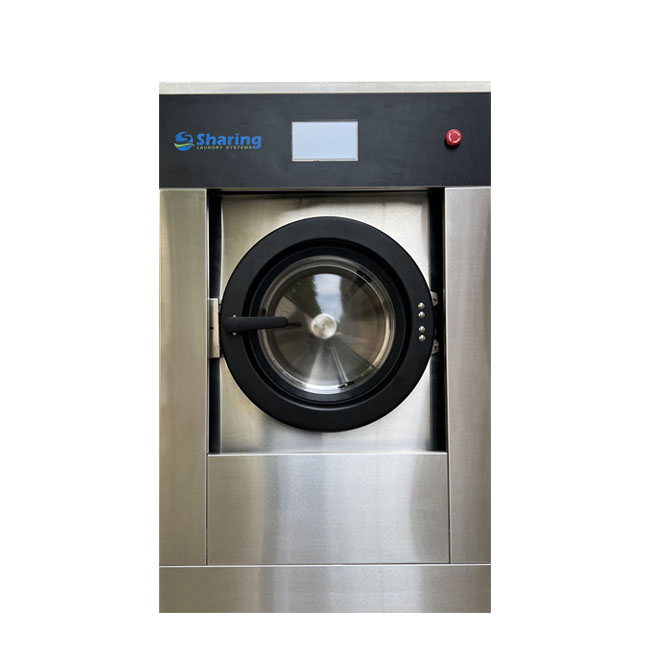

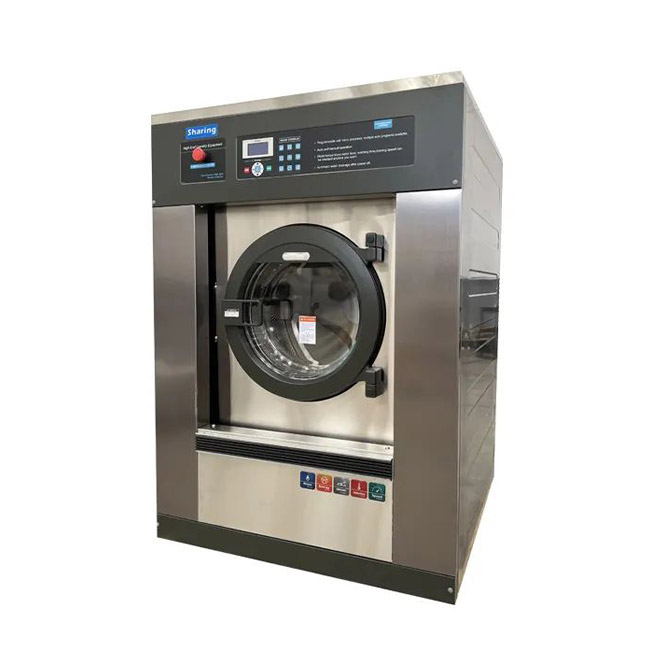

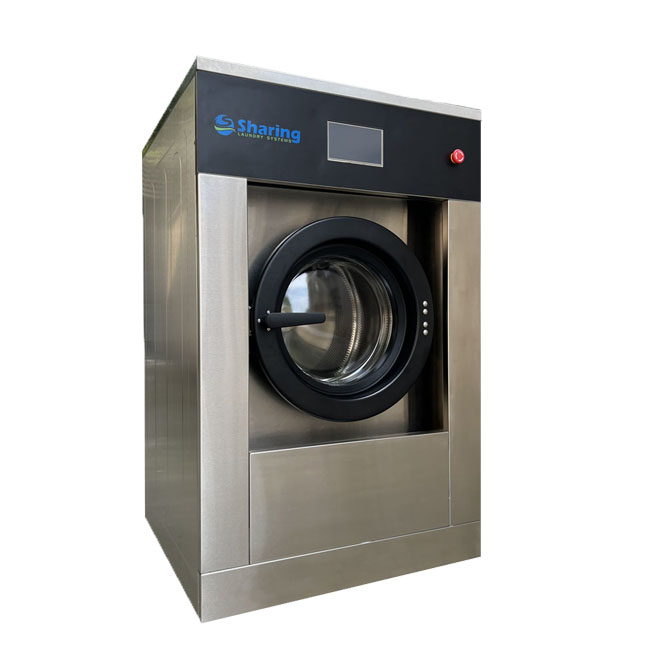

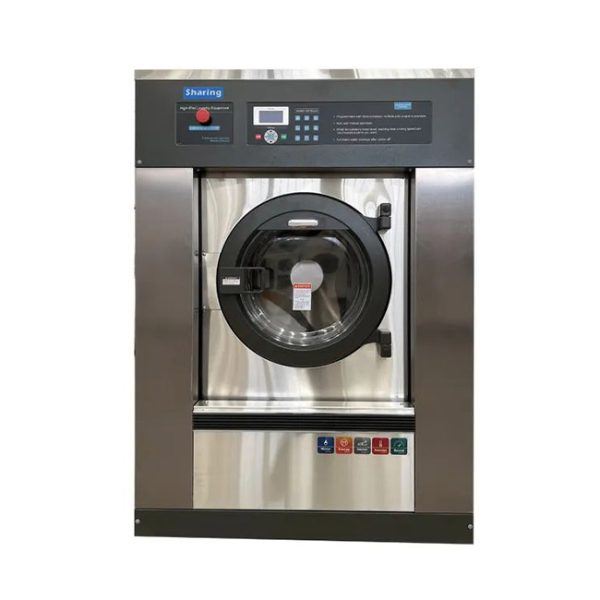

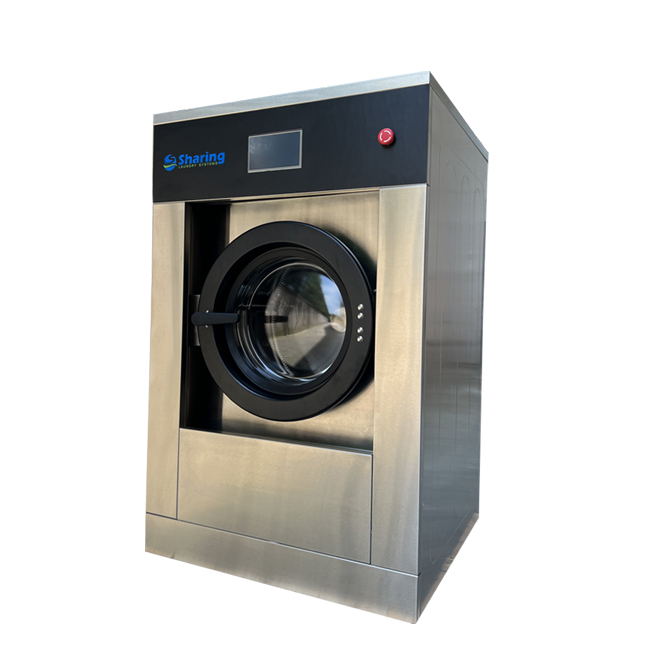

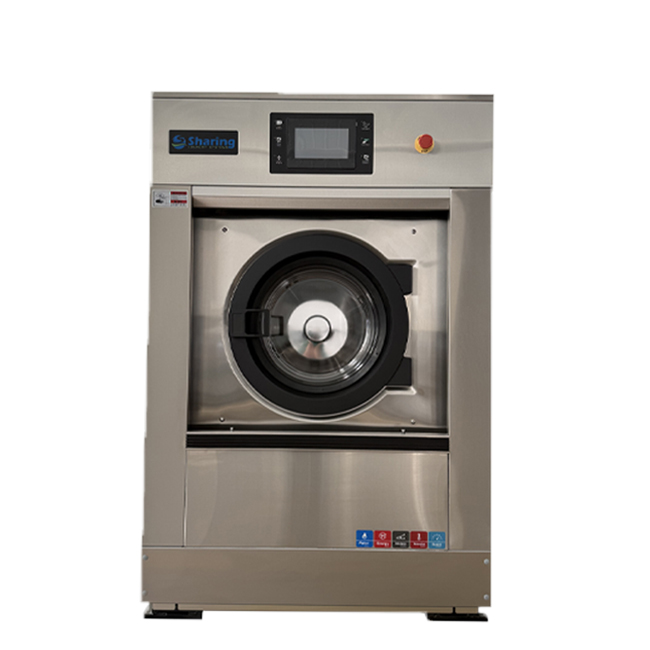

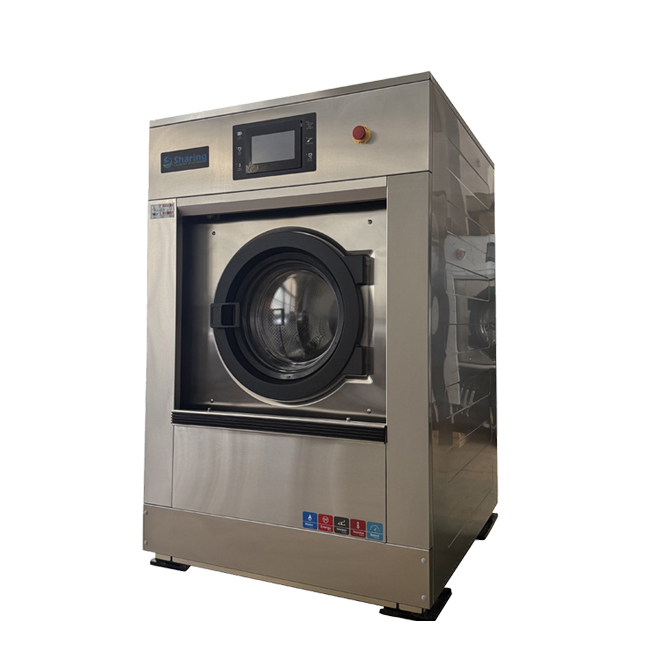

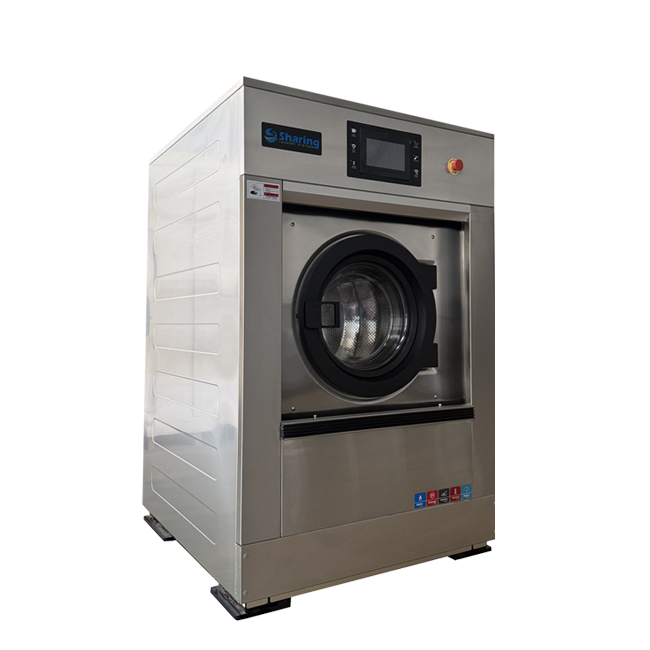

Commercial Washing Machine

Category:

Description

1, Commercial laundry washing machine is high spin soft mount type. With the multi directional springs system, the machine can absorb 97% of all vibrations. Ensure the stability when the extract speed reaches up to max.350G.

2, All metallic parts that come into contact with water are in AISI304. Including inner drum, outer drum and panels, etc. 80% above parts are processed by molds, the inner and outer drum is processed by laser.Achieve compact design, light but robust structure, maximize the durability and longevity.

3, All the electric elements such as frequency converter are world well-known brand. It has very good performance even in hot and humid environment.Significant reduction in noise, vibration, and fatigue of the washing machine components.

4, The washers are able to quietly and gently reach extract speed up to Max. 350G. This feature benefits the laundries with less operation time, less drying-time which brings lower energy consumption and labor expense.

5, Large diameter basket with multiple ribs produces better mechanical wash action for optimum wash quality with less detergent.

6, Single motor inverter drive allows programmable right wash speed for wide variety of fabrics. the inverter controlled motor and the matched controller programs enable the extract speed reach up to 350G

7, 5 automatic detergent cups turn over and flush all detergents thoroughly into the basket, no remaining lump in cups.

8, Thanks to the independent suspension system, the washers can be installed on any normal and unconventional locations with zero impact on the floor or ground.

Technical Parameters

Model

Unit

XGQ-15

XGQ-25

Capacity

Kg

15

25

Volume

L

153

250

Washing Speed

Rpm

48

45

Distribution Speed

Rpm

75

60

High Extract

Rpm

920

900

Power Supply

V

220V/60Hz, 380V/50Hz,415V/50Hz

Motor Power

Kw

1.5

2.2

Electric Heating Power

Kw

8

18

Water Consumption

L/h

280

350

Steam Consumption

Kg/h

≤15

≤18

Steam Pressure

Mpa

0.4-0.6

0.4-0.6

Cold Water Inlet

mm

ф20

ф20

Steam Inlet

mm

ф15

ф15

Water Drain

mm

ф50

ф76

Weight

Kg

350

650

Dimension

mm

880X869X1230

1038X1154X1466
