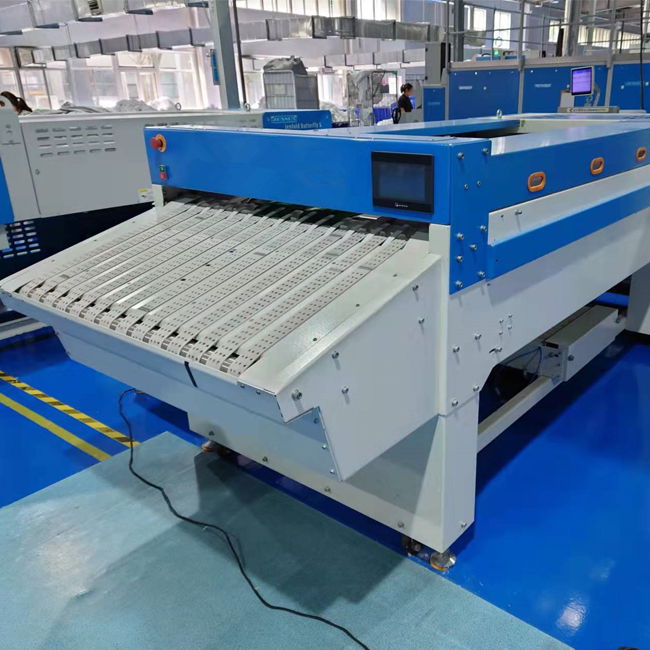

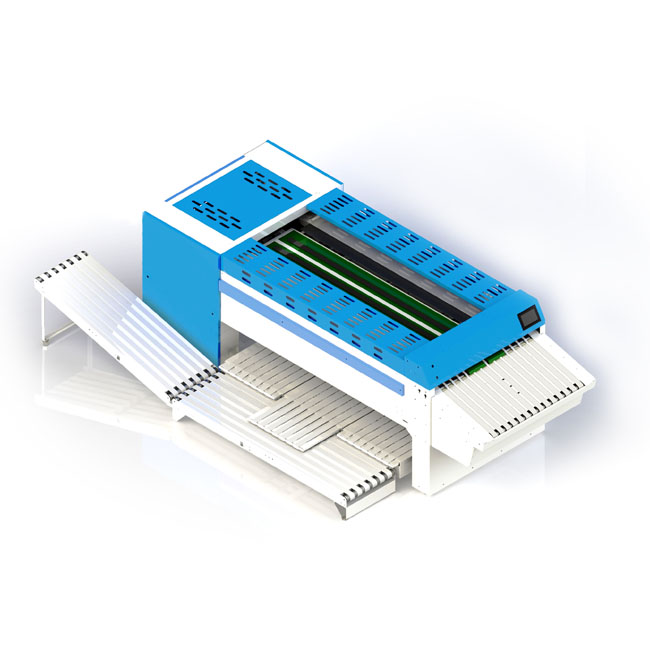

Towel Folder

Category:

Description

  1. Multi-fold design for various kinds of towels.
  2. High folding speed—900-1500 pcs towel can be folded per hour.
  3. Multi-fold patterns meet different demands of towel folding.
  4. STANDARD 1st, 2nd, and 3rd, folds by air, 4th,fold by knife.
  5. Two lateral folds, two cross folds.
  6. Advanced frame structure ensures reliable and stable work for long time.
  7. Key parts and components are all imported world famous brands.
  8. High intelligent controller with 7 inches TOUCH SCREEN.
  9. It is convenient for operators to read the information about towel size, folding size, stack position, etc. on the display screen.
  10. Transmission system: Speed closed-loop function, electro-optical speed measurement system.
  11. Folding standard distinction function: Calculates the folding scope, refuse to fold the over-wide towel, protection and alarm. Guarantee the folding quality.

Features

Model

Unit

ZD-1800

Folding Scope

Towels

Folding Sizes

mm

Max1800x1200

Max Speed m/min

50

Voltage

V/Hz

220V/60Hz, 380V/50Hz,415V/50Hz

Power Kw

2

Air Pressure

Mpa

0.6

Air Consumption L/min

500

Dimension mm

4500X2150X1350

Weight Kg

1500
