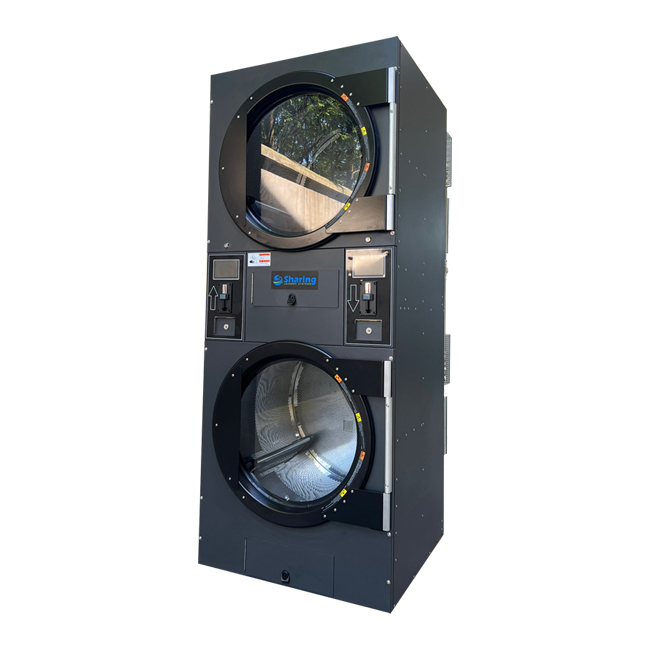

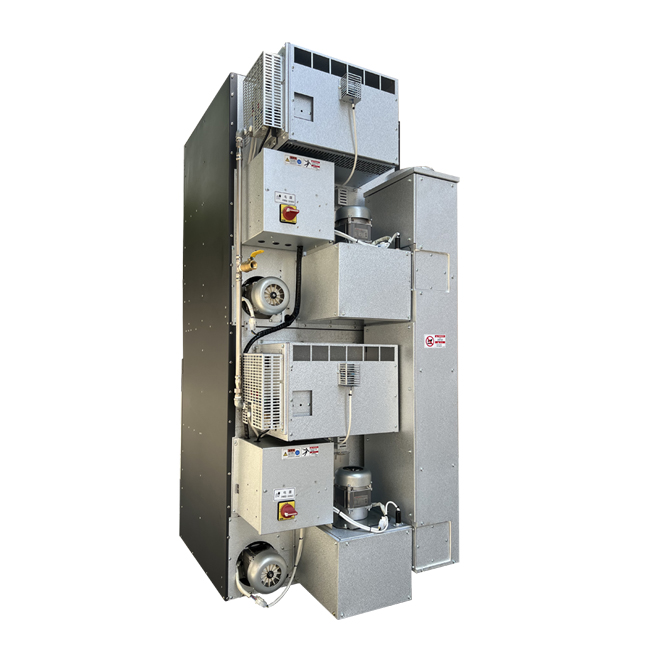

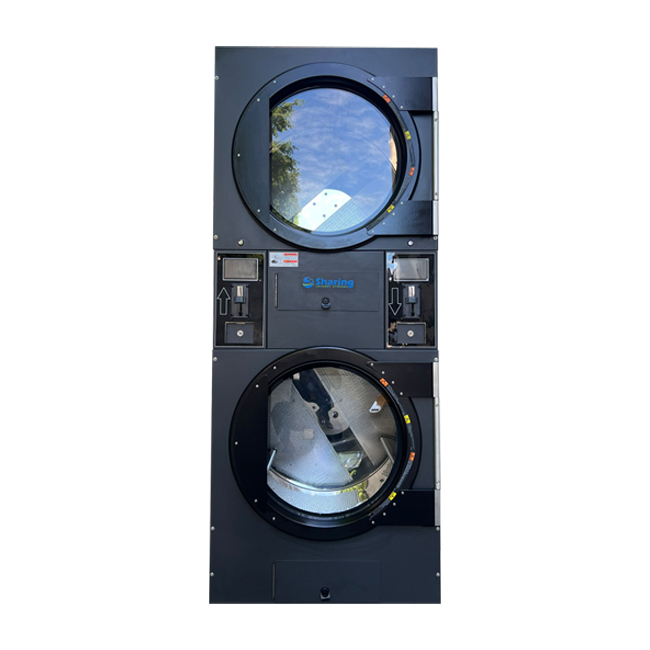

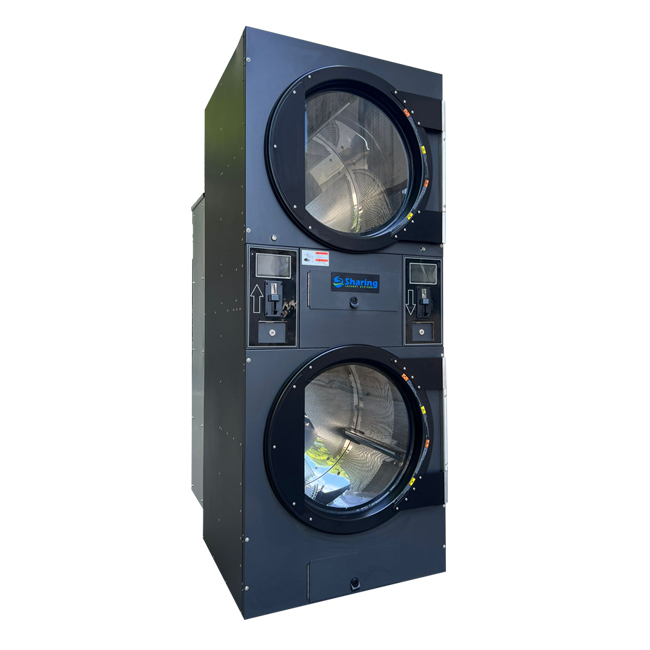

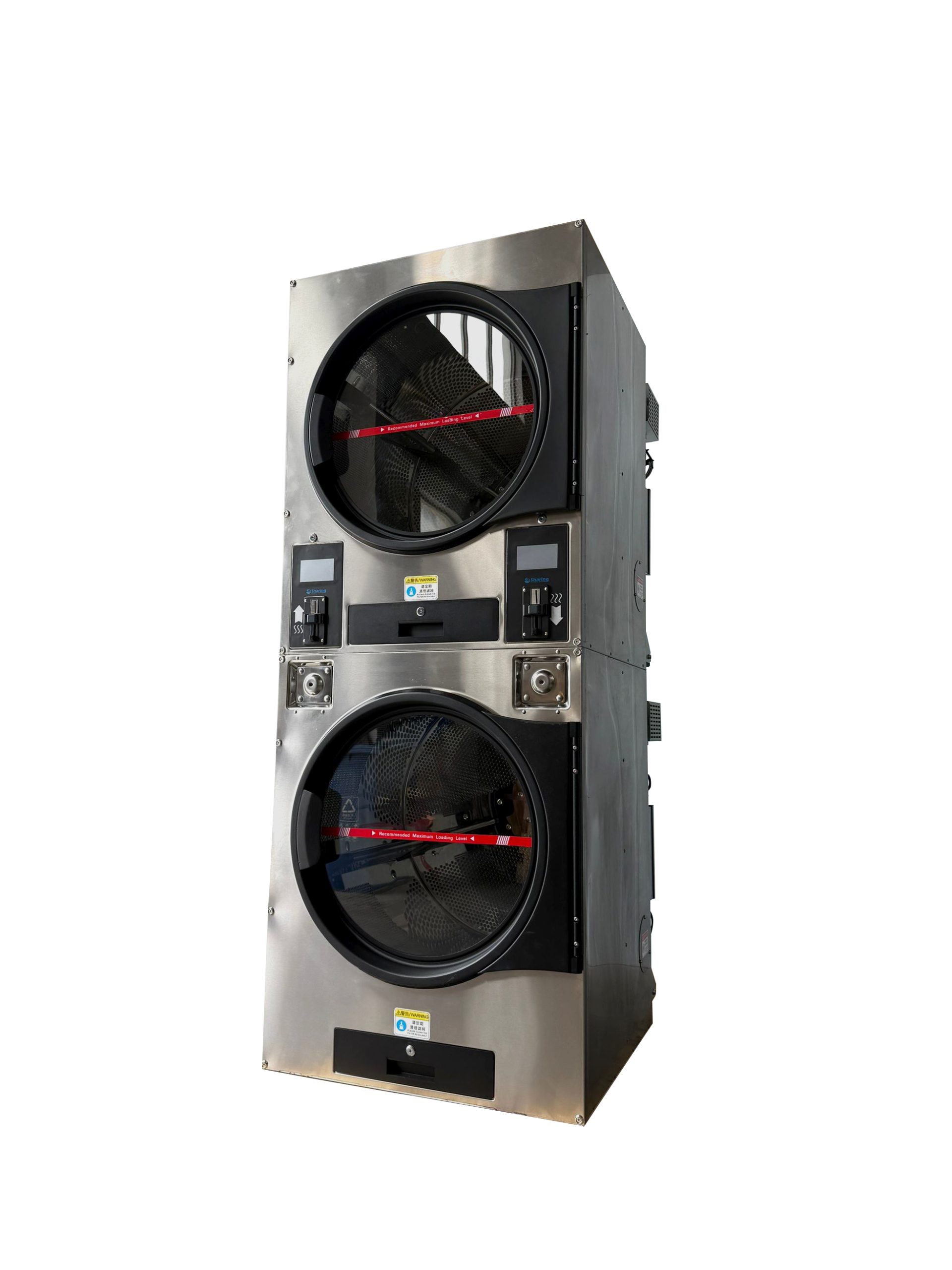

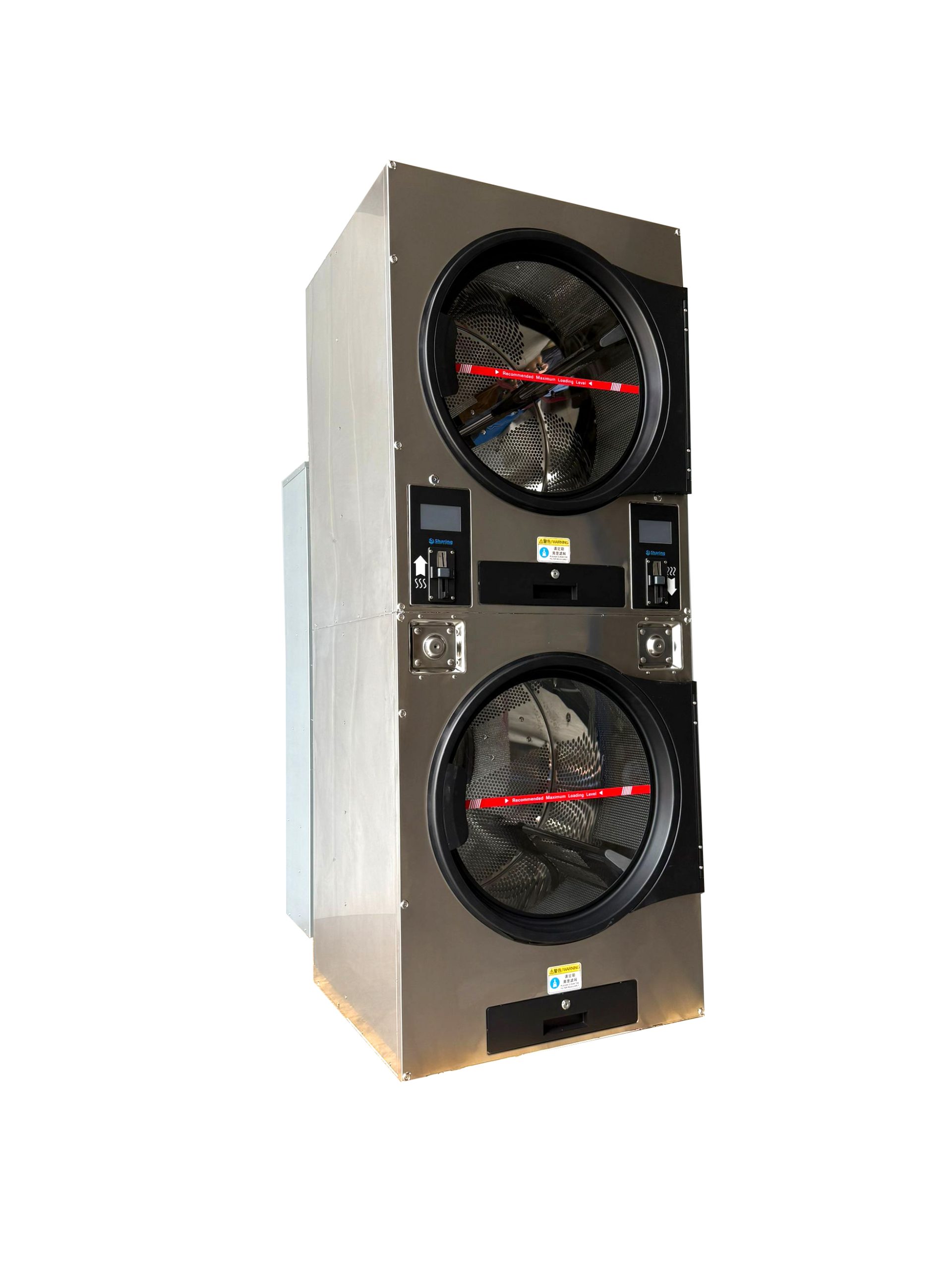

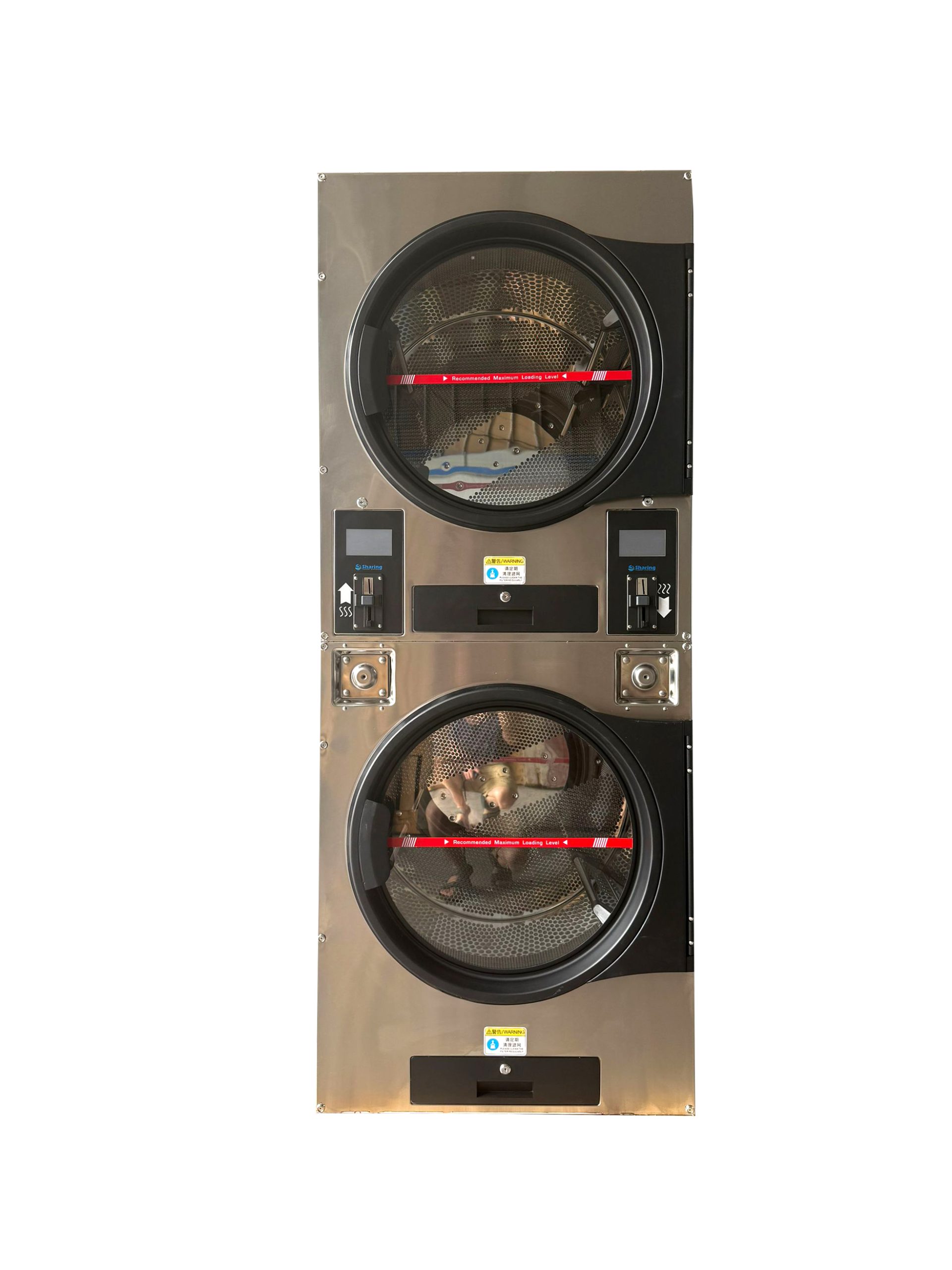

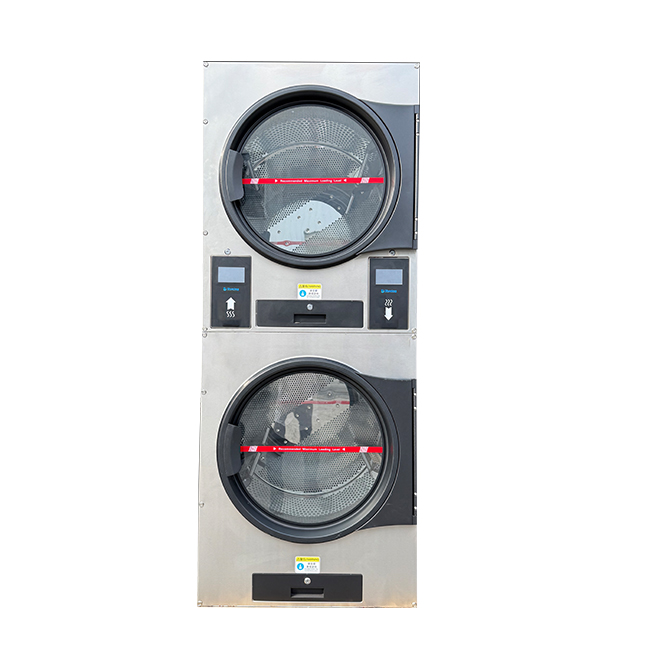

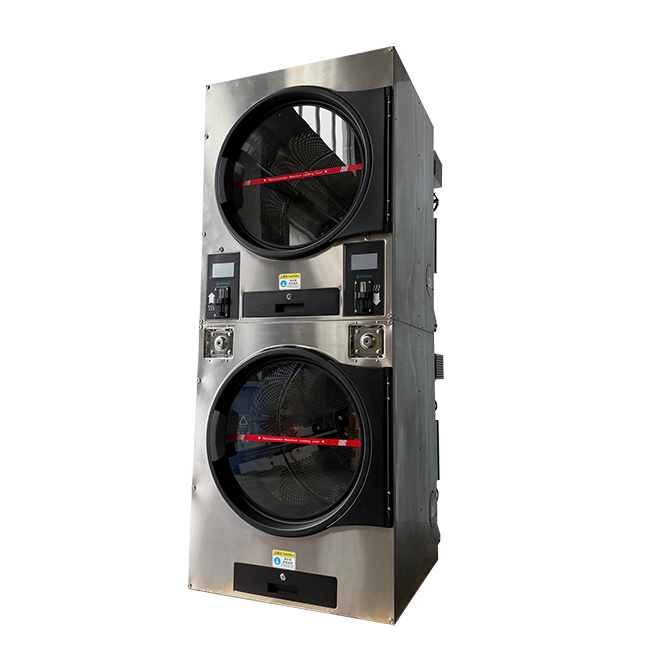

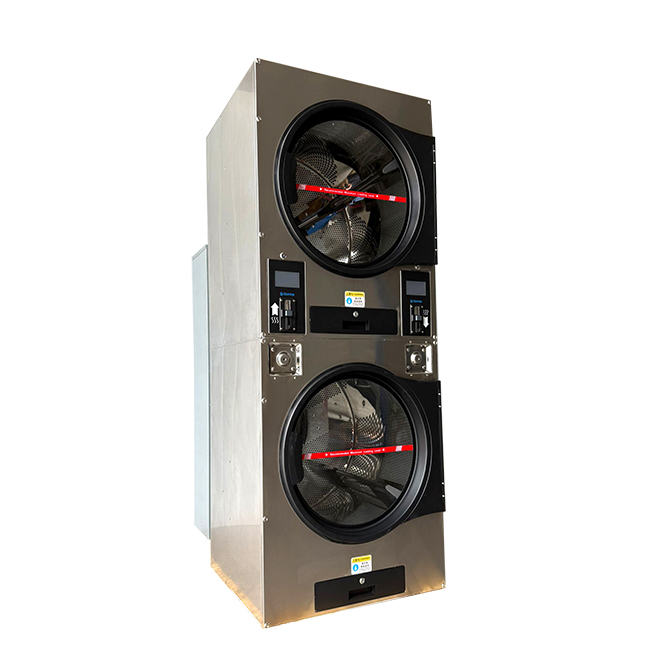

Stacked Dryer

Description

The drying efficiency of this machine is equal to that of world famous brands by absorbing the most advanced technology and core accessories from abroad.
The drums of this machine are made of stainless steel, and the motors and electrical appliances are made of American standard products and French Schneider products, which greatly prolong the service life.
The self-developed computer control system facilitates the operation and provides precise drying temperature setting。
The machine can be customized according to customer requirements: coin-operated, IC card payment and other functions.

MODEL	UNIT	SSD-15
Capacity	kg	13.6*2
Capacity	lbs	30*2
DRUM
Size(diameter*depth)	mm	762×660*2
Volume	L	301*2
ELECTRIC
Power Specifications	V/Hz/P	220V-60Hz;3N+PE, 380/415V-50Hz;3N+PE
Main Motor Power	Kw	0.25*2
Fan Power	Kw	0.35*2
HEATING
Electric Power	Kw	12*2
Steam Pressure	Kg/cm³	—
Steam Consumption	Kg/h	—
Gas pressure (natural gas NG)	mbar	20
Gas pressure (liquefied gas LPG)	mbar	37
Natural Gas Consumption	m³/h	4.5
Lpg Gas Consumption	m³/h	1.5
Exhaust diameter	mm	193*300
Exhaust volume	m³/min	35
DIMENSIONS
Width	mm	800
Depth	mm	1100
Height	mm	2016
Weight	kg	280
