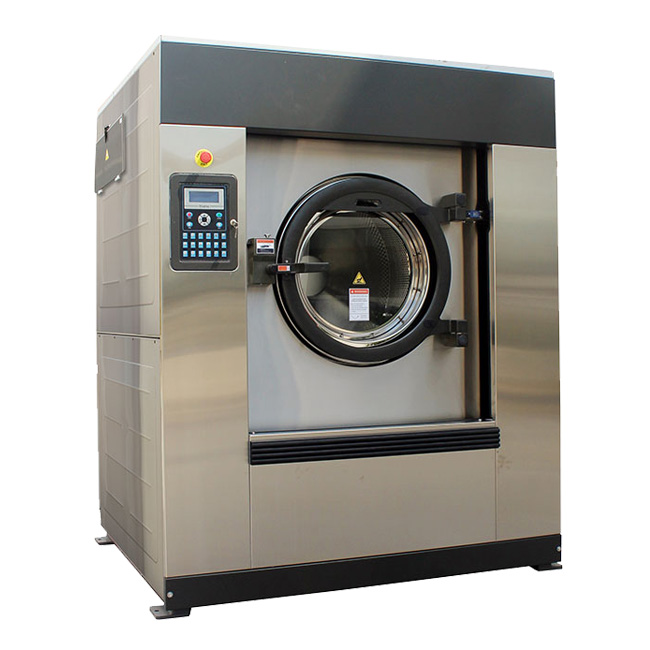

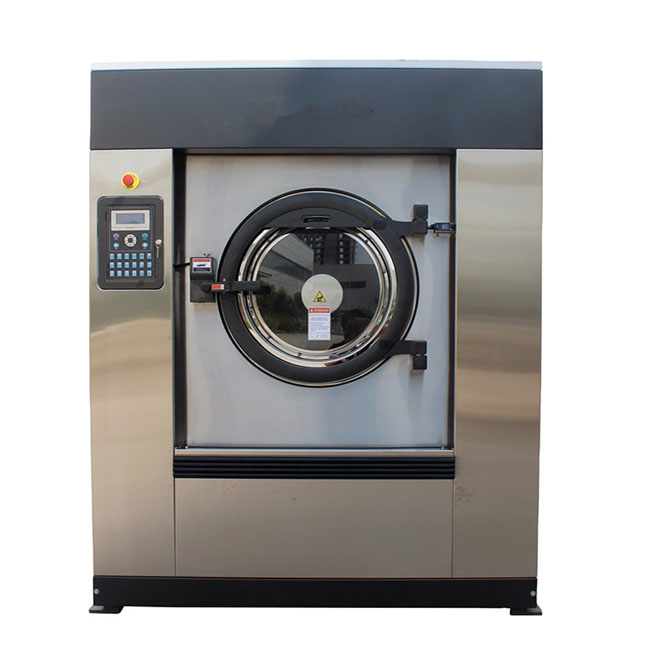

Washer Extractor

Category:

Description

  1. Adopt advanced programmable microcomputer control system, large screen display, realize Chinese man-machine dialogue, can automatically and independently complete functions such as adding water, heating, washing, adding agent, uniform cloth, and de-drying, and realize various fault self-checks and operation prompts.
  2. The new shock absorption, shock absorption and shock absorption system are adopted, and multiple connection points are set between the outer frame and the inner body, which effectively prevents the unbalanced vibration in all directions when drying out; the equipment does not need special foundation fixing at all, with high shock absorption rate and low noise.
  3. It adopts full frequency conversion stepless speed regulation control, which can meet the requirements of rapid linear increase and conversion of rotational speed, and can achieve the required drying rate arbitrarily.
  4. Unique design of computer dosing system, all auxiliary materials are added at one time, computer execution, reasonable integration of hot and cold washing and de-drying, high cleaning degree, so that the whole machine has complete functions and excellent performance.
  5. Bearings and shaft seals are imported well-known brands, and the door seals are made of temperature-resistant and corrosion-resistant fluororubber sealing rings, which solves the problem of water leakage when the equipment is in use, and makes the laundry room clean and tidy.
  6. The inner and outer drums are made of imported high-quality mirror stainless steel, which has strong corrosion resistance and smooth drum wall, ensuring that no stains remain in the drum, and effectively preventing the secondary pollution of the fabric.
  7. The moulding level is high, and the inner drum adopts the advanced European non-marking spinning technology to form at one time, no welding, higher strength, durability, beautiful atmosphere, and the domestic water washing machine that realizes the application of non-marking spinning and non-welding forming technology.
  8. The large-diameter loading door is more convenient and labor-saving to throw clothes, and is equipped with a safety door lock, which can be controlled manually or automatically.
  9. The frequency converter, control system electrical components, shock absorber damper, drain valve and other components are all world or domestic famous brands to ensure stable and reliable performance of the equipment and durability.

Features

MODEL Unit XGQ-40F XGQ-60F

XGQ-100F

Dry Load kg 40 60

100

DRUM

Diameter mm 903 1078

1310

Depth mm 626 620

746

Volume

L 400 565

1000

Washing speed

R/min 44 44

42

High Spinning speed

R/min 800 760

750

High Spinning factor

G 320 350

420

ELECTRIC

Power Specifications

V/Hz/P

220V-60Hz;3N+PE, 380/415V-50Hz;3N+PE

Motor power

Kw 4 5.5

11

Inverter power

Kw 4 5.5

11

HEATING

Steam Consumption

Kg/h 30(-) 40

60

Steam pressure

Mpa 0.2-0.6 0.2-0.6

0.2-0.6

Steam pipe diameter

mm

DN25

Electric heating power Kw 30 30

60

WATER

Drain pipe diameter mm Φ76 Φ125

Φ125

Inlet pipe diameter

mm DN38 DN38

DN50

Inlet water pressure

Mpa 0.2-0.4 0.2-0.4

0.2-0.4

Water Consumption

L/h 420 590

1390

DIMENSIONS

Width

mm 1260 1619

1770

Depth

mm 1410 1500

1790

Height

mm 1750 1962

2058

Weight kg 1200 1960

3000

Noise DB

≤75
